Layer 3: Furniture

Use this layer to add workstations, conference room furniture, and any significant furniture in common spaces (reception desk, cafe tables, etc.)

Object Styles (Furniture group)

• Workstation Walls

• Furniture

Directions

1. Use the Pen tool and the Furniture object style to trace each conference room table.
2. Drag the chair element from the DORIS Usability Library. Duplicate it as many times as needed. Use the Transform tools to face the chairs in the appropriate direction.

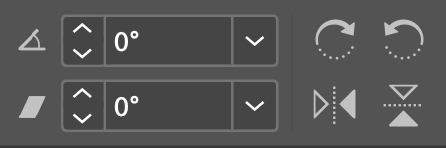

< Transform Tools

3. With the Pen tool, trace the desks in each workstation (not in private offices).

Tip: Most buildings have a few types of workstation configurations. Duplicate, move, and transform desks as needed.

4. Use the Pen tool and the Workstation Walls object style to draw cubicle walls.
5. Lock the layer.
